PTO Link™ Compact System – Implement (Male) Plate

BIGTOOLRACK

PTO Link™ Compact System – Implement (Male) Plate

Sale price$179.99 Regular price$184.99
Save $5.00
Quantity:

The PTO Link™ Compact system (for tractors up to 70 HP Cat-1) is designed to quickly and safely connect/disconnect tractors and implements at the PTO... in seconds! The PTO Link is the original, universal quick-connect system that consists of two interconnecting plates (female and male). For best results, every tractor should have the Tractor (Female) Plate installed and every implement should have an Implement (Male) Plate installed.

* The Compact System is specifically designed to work for smaller tractor PTO splines (less than 3 inches), but can also be used on standard PTO spline lengths (up to 40 HP). It is the required system for certain tractor models: Kubota BX, B & LX Series, Kioti CS Series, Yanmar SA Series, John Deere 2520, New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026 and LS MT125, which are not compatible with our HD system.

Note: Most other tractors (up to 130 HP) are compatible with our PTO Link HD model, so IF your tractor model is NOT listed above and your tractor spline length is greater than 3′′, the PTO Link HD System is your
alternate option.

  • Works with rear 6-spline 540 RPM PTO for tractors up to 40 HP*
  • Simple one-step installation and easy removal for each plate. No special tools or installation hardware required
  • Built to last (AISI 4140 hardened alloy steel with QPQSM finish)
  • Adds approximately 4.5 inches to the overall length of the driveline, when fully installed
  • The PTO Link system is NOT an adapter. To be in compliance with ASABE standards, do not use PTO Link in combination with PTO adapters.
  • Limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link parts for one year from the date of purchase.
  • NOTICE for Kubota BX tractors ONLY! The specially designed Lift Arm Stabilizer Replacement Plate is required when using in conjunction with the PTO Link Compact system on all BX series tractors. This REPLACEMENT plate retains all of the functionality of the original Kubota part, but shortens its overall length to avoid making any contact with the PTO Link system when the lift arm hydraulics are in full-lift position. See more details and pricing.
  • NOTE: This product is for a single Compact Implement (Male) Plate only. The Compact Tractor (Female) Plate will also be needed to complete the quick-connect system.
  • Compatibility: the PTO Link Compact System (White Label) is NOT compatible or interchangeable
  • with other PTO Link systems (Red or Blue Label), due to the specific design of mating components for other systems.
  • Dimensions:
    • Implement (Male) Compact Plate (3.75” W x 4.0625” H)
  • Weight:
    • Implement (Male) Compact plate: 2 lbs, 2 oz

As an important safety precaution, be sure to turn off tractor’s engine during installation, shield any rotating parts and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is extremely important and every precaution should be taken.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

You may also like

Save $20.00

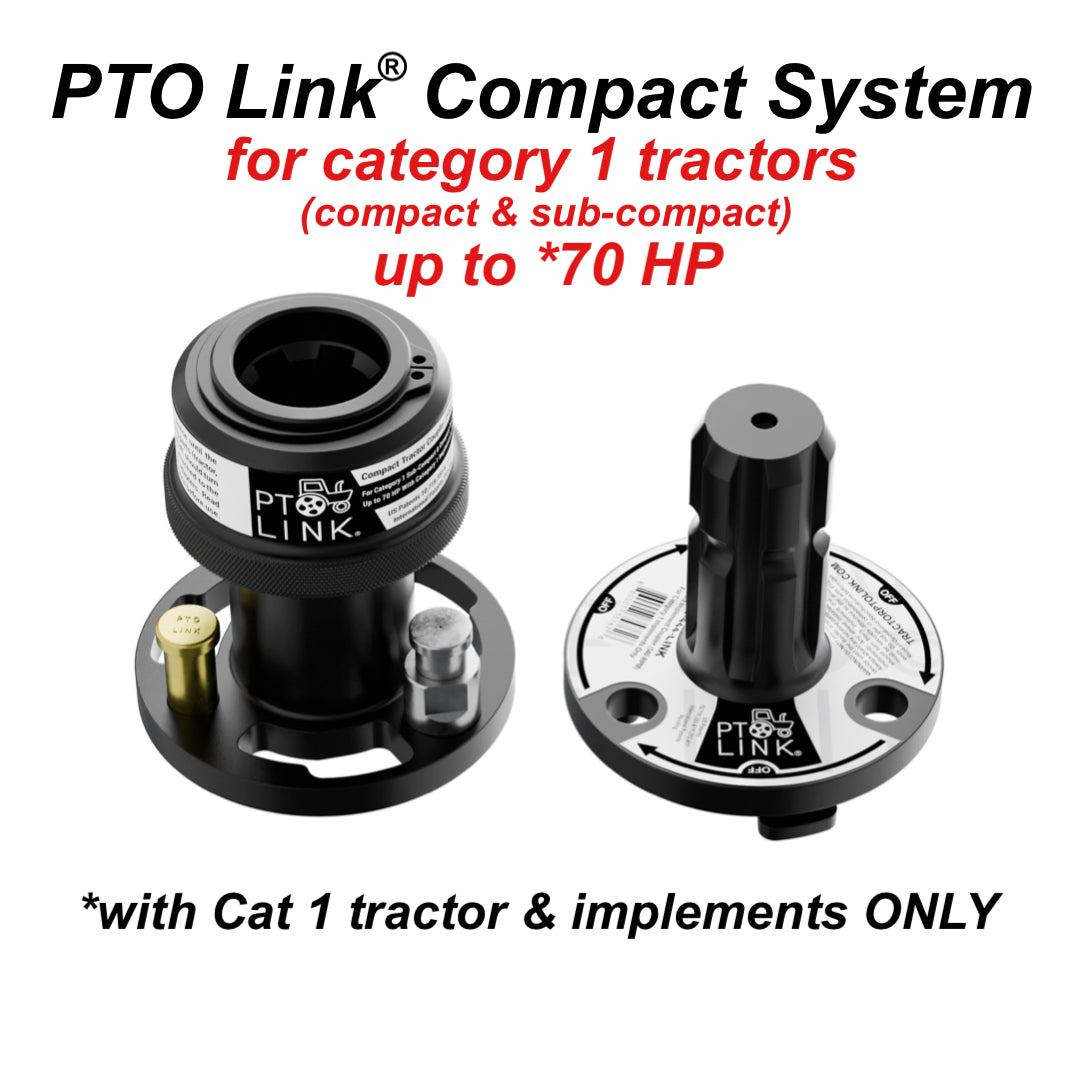

PTO Link™ Compact System *FREE SHIPPING*PTO Link™ Compact System *FREE SHIPPING*
PTO Link™ Compact System *FREE SHIPPING*
Sale priceFrom $349.99 Regular price$369.99
Save $5.00

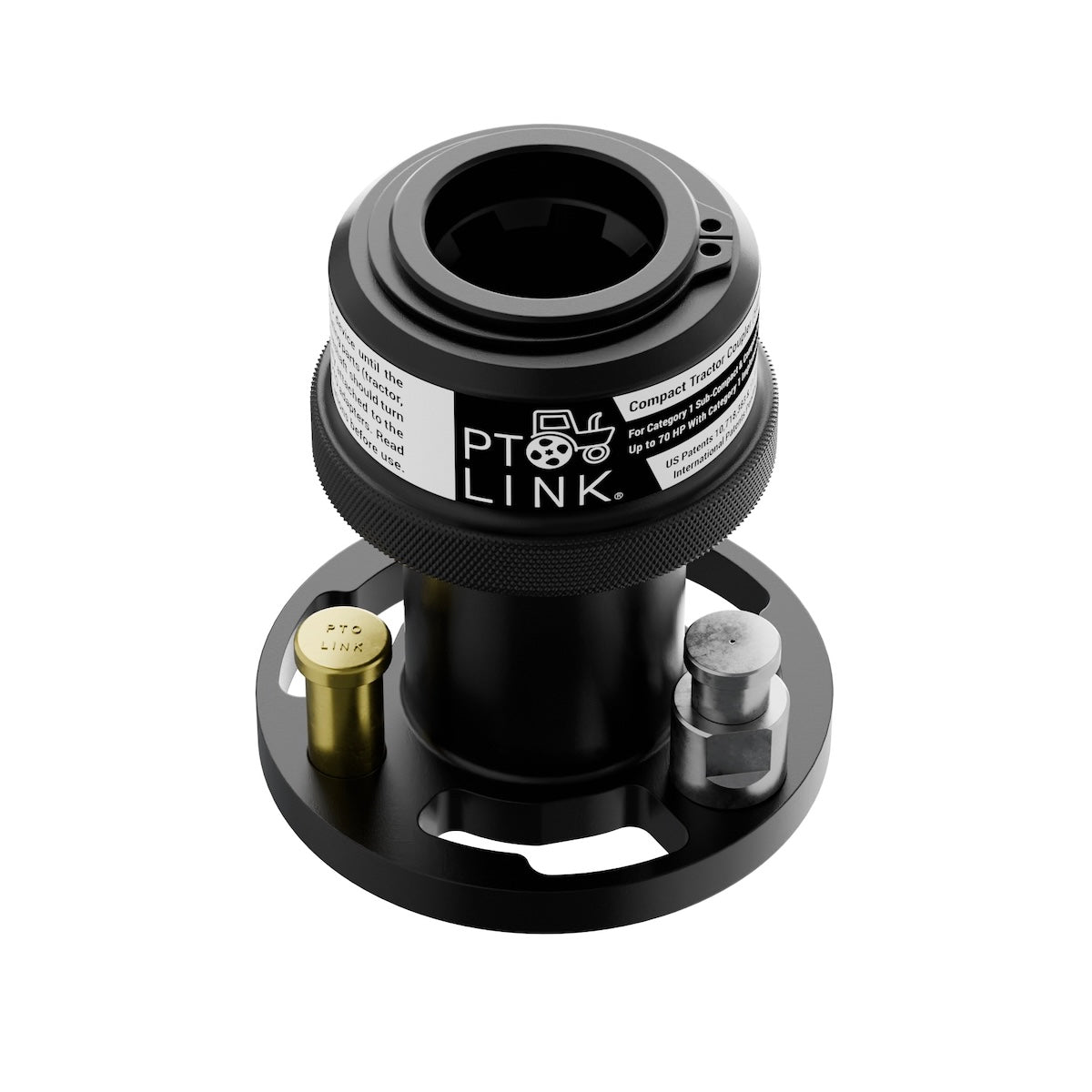

PTO Link™ Compact System – Tractor (Female) Plate
PTO Link™ Compact System – Tractor (Female) Plate
Sale price$179.99 Regular price$184.99

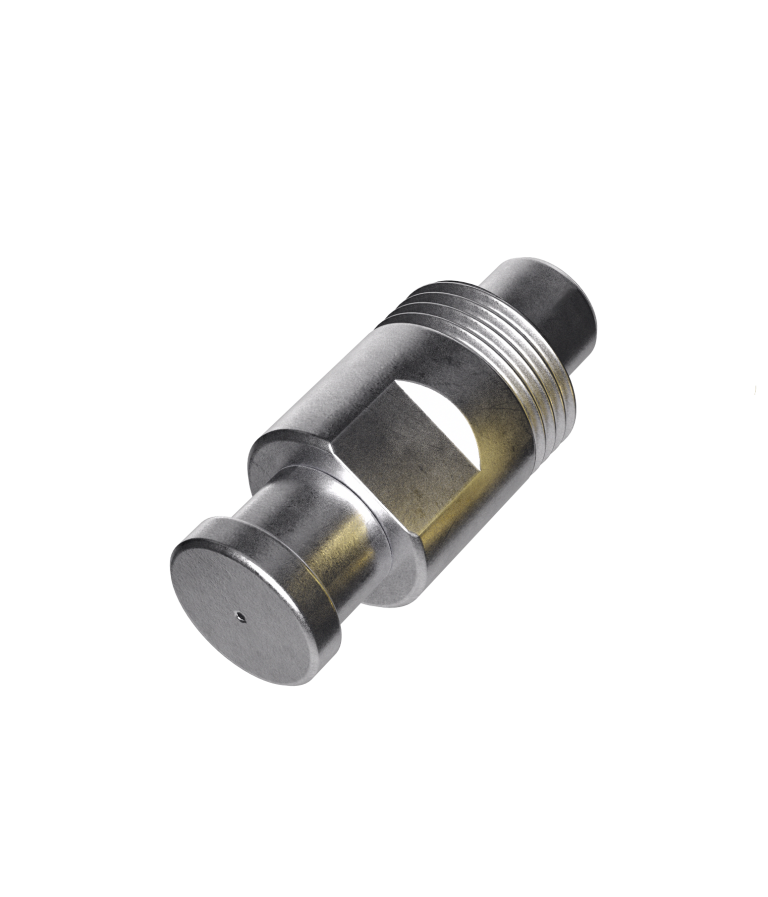

PTO Link™ Compact System – Replacement Shear/Locking Pin
